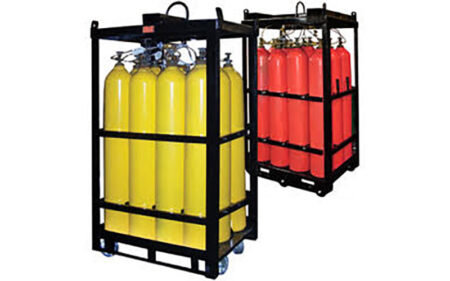

Certified Cylinder offers fully assembled and installed cylinder cradles, gas packs, and pallet manifolds for high-pressure steel cylinders in 250CF, 300CF and HC4500 capacities. We assemble and install them at our production facility and ship them directly to your gas fill plant all you have to do is fill them.

Benefits:

• Certified Cylinder saves you time and labour by offering fully assembled cylinder cradles & gas packs
• Eliminates the need for additional assembly and installation at your fill plant
• Assures the entire cradle has the same test date on all cylinders
• Just fill and ship directly from your facility

Options:

• Choose from popular brands, models, and sizes of cradles, gas packs & pallet manifolds
• Available in 6-, 12-, and 16-cylinder configurations
• Available with casters, forklift accessibility, or crane lift (or any combination of all three)

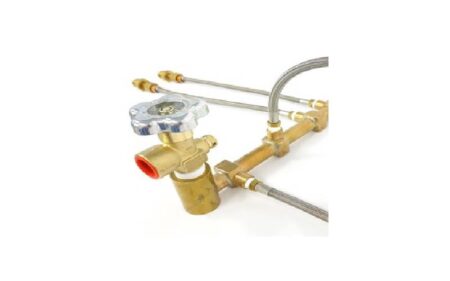

• Rigid or flexible pigtail manifolds
• Customizable – available with unlimited paint colours or galvanized coating, and laser – cut plates with your company logo

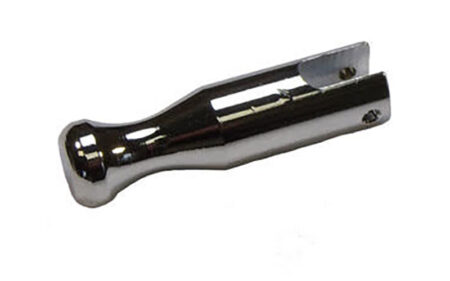

This toggle handle fits the post-style valves on popular medical size cylinders, such as the E or D size cylinders. Often the medical post-style valves come without a toggle so this part can come in handy. This toggle allows you to operate the valve without a wrench. This toggle includes a roll pin to secure the toggle to the valve. Fits CGA870, CGA910, CGA940, CGA950 and CGA960 post-style valves.

*Be sure to check the valve stem of the valve you are looking to install a toggle in to ensure it has a hole, it is necessary to install the toggle.

At room temperature, carbon dioxide (CO2) is a colourless, odorless, non-flammable gas. At other temperatures and pressures, CO2 can be a liquid or a solid. When filled into cylinders it undergoes a transition from gas to liquid at room temperature at an attainable pressure of approximately 60 BAR (870 PSI), allowing far more CO2 to fit in a given container than otherwise would.

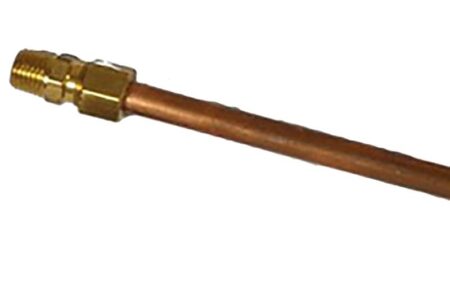

Dip tubes, also known as Siphon Tubes or Extraction Tubes, are used in situations where you need to draw out liquid gas. The dip tube acts like a straw and is used to draw out liquid gas from the bottom of the cylinder. When a CO2 cylinder does not have a dip tube it will simply supply vapour from above the liquid.

Our dip tubes are made of copper and are available up to 53” in length. Also available with holes for mixed gases.

Dip Tube Uses:

• Making Dry Ice
• Food preservation and refrigeration
• Extraction Systems
• Special Effects
• Gas Mixing
• Transfilling

* The cylinder valve must be removed in order to install this product.Must be installed by a qualified cylinder technician due to torque specifications. Compressed gas cylinders and valves are dangerous, please use caution.

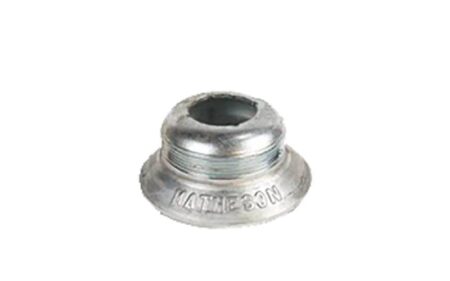

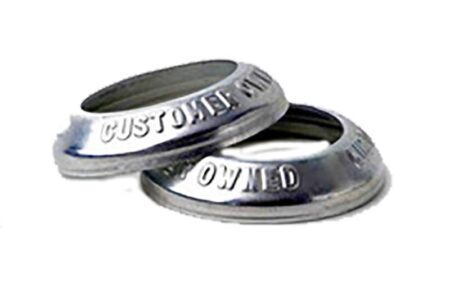

Cylinder neck-ring skirts afford the owner of a cylinder the ability to identify ownership of the cylinder. When cylinders change ownership very often the neck-ring will have the previous owner identified. To replace the neck-ring the process can prove costly and time consuming. The cylinder neck-ring skirt is placed over the existing neck-ring with the identifying label of the new owner and is easily affixed.

Neck-ring skirts enable you to install them over existing neck-rings in minutes. They are secured with an adhesive and come with locking tabs. We can supply these either plain or embossed with a company name. All parts are stocked with a zinc-plated finish.

Features:

• Embossed lettering
• Designed for standard 3 1/8”-11 thread neck for high-pressure cylinders
• Easy to apply with adhesive
• Zinc plated
• Option: Can provide bore for larger thread sizes (i.e., 3 ½” for Acetylene Cylinders)

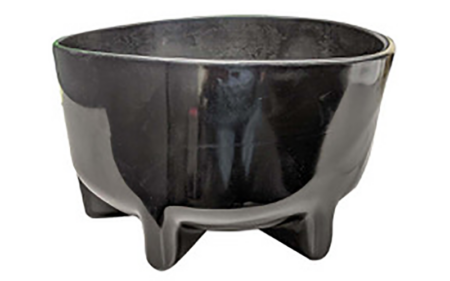

Pliable plastic gas cylinder boot which allows most older round-bottom cylinders to free stand. Fits 20# round-bottom steel cylinders with an 8” diameter.

This cylinder boot is non-permanent and can be easily removed for future inspections.

Never lose CO2 during a rush — Carbo-Switch™ senses and switches CO2 tanks automatically. Carbo-Switch™ 2100: When the customer’s supply regulator is attached to the output fitting of the Carbo-Switch™, it will read the pressure of Tank 1, while the gauge on the right side of the unit will read the pressure of Tank 2. The Carbo-Switch™ first draws gas from Tank 1. At this point, the output from the Carbo-Switch™ unit is equal to the regulator setting of Tank 1. When the pressure of Tank 1 drops to 200 psi, the Carbo-Switch™ begins drawing gas from Tank 2. As soon as Tank 1 is replaced, the Carbo-Switch™ begins drawing from Tank 1 again. Should the pressure of Tank 2 drop below 200 psi before Tank 1 is replaced, the Carbo-Switch™ will draw from both cylinders equally until both are empty, or one or more of the cylinders are replenished. The Carbo-Switch™ is pressure operated and has no moving mechanical or electrical parts to fail.

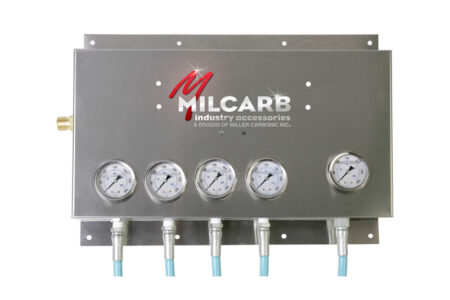

Carbo-Switch™ 3100: Carbo-Switch™ 3100 is a three-cylinder Automatic Switchover Manifold with same operating principle as the two-cylinder Carbo-Switch™ manifold except there are two cylinders on the primary supply side and one cylinder as the back-up gas source Carbo-Switch™5100: Carbo-Switch 5100 is a Five-Cylinder Automatic Switchover Manifold that operates the same as the two-cylinder Carbo-Switch™ manifold except there are four cylinders on the primary supply side and one cylinder for the back-up gas reserve.

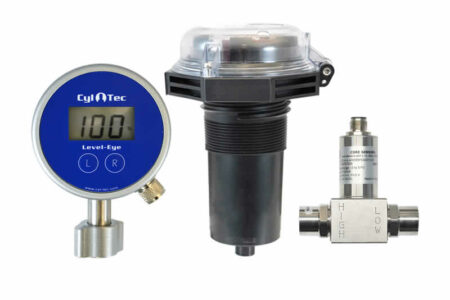

Telemetry solution for gas cylinders. This data allows gas distributors to support the same number of cylinders in the field while making fewer delivery trips. It also improves delivery route planning, usage tracking, and future demand prediction. The device monitors and transmits the cylinder’s usage and fill level.

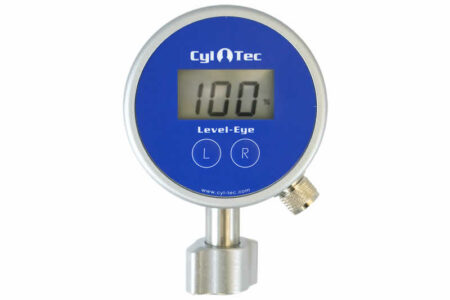

• Level-Eye® Digital Level Gauge
